Pillow Block Bearings

· PRODUCT

PRODUCT

SUMMARY

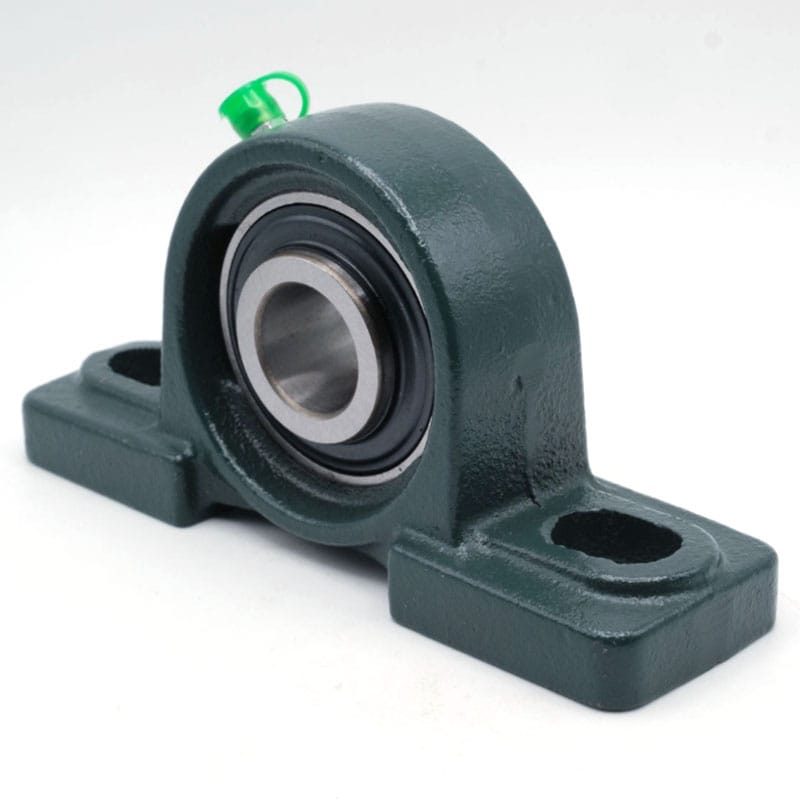

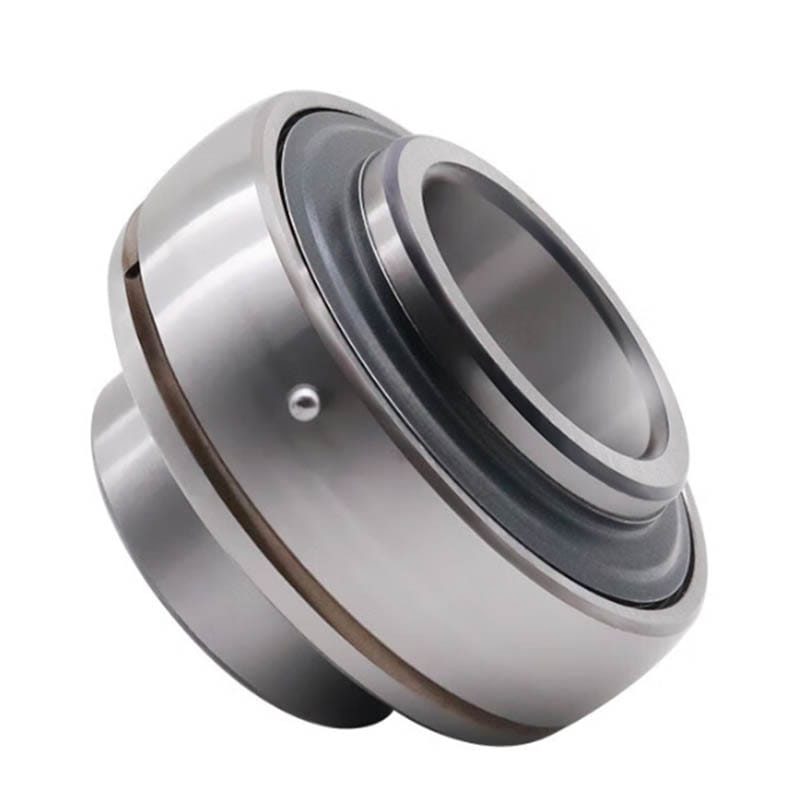

Pillow block bearings are a type of mounted bearing designed to support rotating shafts and reduce friction between the shaft and housing. These bearings feature a ball bearing insert housed in a solid block, often made of cast iron, steel, or polymer materials, with a variety of housing designs for different installation needs. They are commonly used in industrial machinery, conveyor systems, and agricultural equipment, providing reliable performance and easy maintenance with a compact, self-aligning design.

SERIES

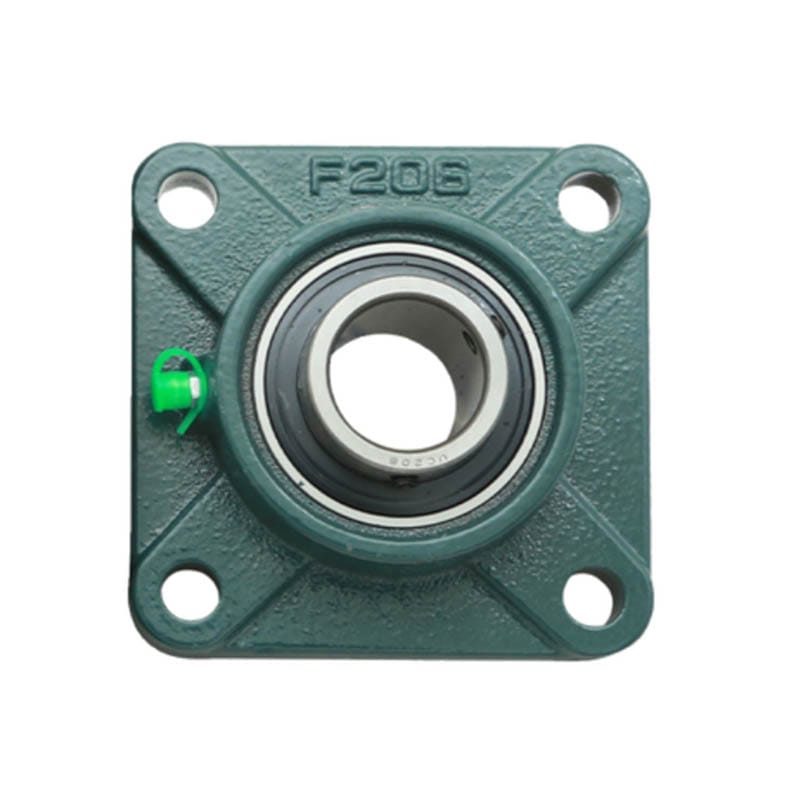

· UC series, UCP series, UCPA series, UCF series, UCFL series,UCFC series, UCT series, UK series, UKP series

……Many other bearing models and series are not listed here. If you have any specific requirements or questions, feel free to contact us.

Model NO.	d	D	B	(S)	S1	C		C1	C2	dS
			max		max	min	max
UC 201S	12	40	27.4	11.5	15.9	12	15	3.4	2	M5×0.8
UC 201S-8	12.7									10-32UNF
UC 201S-9	14.288									10-32UNF
UC 202S	15									M5×0.8
UC 202S-10	15.875									10-32UNF
UC 203S	17									M5×0.8
UC 203S-11	17.462									10-32UNF
UC 201	12	47	31	12.7	18.3	14	17	3.7	2	M6×1
UC 201-8	12.7									1/4-28UNF
UC 201-9	14.288									1/4-28UNF
UC 202	15									M6×1
UC 202-10	15.875									1/4-28UNF
UC 203	17									M6×1
UC 203-11	17.462									1/4-28UNF
UC 204-12	19.052	47	31	12.7	18.3	14	17	3.7	2	1/4-28UNF
UC 204	20									M6×1
UC 205-13	20.638	52	34.1	14.3	19.8	15	17	3.9	2.5	1/4-28UNF
UC 205-14	22.225									1/4-28UNF
UC 205-15	23.812									1/4-28UNF
UC 205	25									M6×1
UC 205-16	25.4									1/4-28UNF
UC 206-17	26.988	62	38.1	15.9	22.2	16	19	5	2.5	1/4-28UNF
UC 206-18	28.575									1/4-28UNF
UC 206	30									M6×1
UC 206-19	30.162									1/4-28UNF
UC 206-20	31.75									1/4-28UNF
UC 207-20	31.75	72	42.9	17.5	25.4	17	20	5.7	3	5/16-24UNF
UC 207-21	33.338									5/16-24UNF
UC 207-22	34.925									5/16-24UNF
UC 207	35									M8×1
UC 207-23	36.512									5/16-24UNF
UC 208-24	38.1	80	49.2	19	30.2	18	21	6.2	3	5/16-24UNF
UC 208-25	39.688									5/16-24UNF
UC 208	40									M8×1
UC 209-26	41.275	85	49.2	19	30.2	19	22	6.4	3	5/16-24UNF
UC 209-27	42.862									5/16-24UNF
UC 209-28	44.45									5/16-24UNF
UC 209	45									M8×1
UC 210-29	46.038	90	51.6	19	32.6	20	24	6.5	3.5	3/8-24UNF
UC 210-30	47.625									3/8-24UNF
UC 210-31	49.212									3/8-24UNF
UC 210	50									M10×1.25
UC 210-32	50.8									3/8-24UNF
UC 211-32	50.8	100	55.6	22.2	33.4	21	25	7	3.5	3/8-24UNF
UC 211-33	52.388									3/8-24UNF
UC 211-34	53.975									3/8-24UNF
UC 211	55									M10×1.25
UC 211-35	55.562									3/8-24UNF
UC 212-36	57.15	110	65.1	25.4	39.7	22	27	7.6	4	3/8-24UNF
UC 212-37	58.738									3/8-24UNF
UC 212	60									M10×1.25
UC 212-38	60.325									3/8-24UNF
UC 212-39	61.912									3/8-24UNF
UC 213-40	63.5	120	68.3	25.4	42.9	23	32	8.9	5	3/8-24UNF
UC 213	65									M10×1.25
UC 213-42	66.675									3/8-24UNF
UC 214-43	68.262	125	74.6	30.2	44.4	24	35	8.9	5	7/16-20UNF
UC 214-44	69.85									7/16-20UNF
UC 214	70									M12×1.5
UC 215-45	71.438	130	77.8	33.3	44.5	25	39	8.9	5	7/16-20UNF
UC 215-46	73.025									7/16-20UNF
UC 215-47	74.612									7/16-20UNF
UC 215	75									M12×1.5
UC 215-48	76.2									7/16-20UNF
UC 216-50	79.375	140	82.6	33.3	49.3	26	43	8.9	6	7/16-20UNF
UC 216	80									M12×1.5
UC 216-51	80.962									7/16-20UNF
UC 217-52	82.55	150	85.7	34.1	51.6	28	50	10	6	7/16-20UNF
UC 217	85									M12×1.5
UC 217-54	85.725									7/16-20UNF
UC 217-55	87.312									7/16-20UNF
UC 217-56	88.9									7/16-20UNF
UC 218-56	88.9	160	96	39.7	56.3	30	50	10	6	7/16-20UNF
UC 218	90									M12×1.5
UC 220	100	180	108	42	66	34	51	11.2	6	M12×1.5
UC 220-63	100.012									7/16-20UNF
UC 220-64	101.6									7/16-20UNF

Model NO.	d	D	B	(S)	S1	C		C1	C2	dS
			max		max	min	max
UC 305	25	62	38	15	23	17	24	5.6	3	M6x1
UC 306	30	72	43	17	26	19	26	6	3	M6x1
UC 306-19	30.162									1/4-28UNF
UC 307-20	31.75	80	48	19	29	21	28	6.7	3.5	5/16-24UNF
UC 307-21	33.338									5/16-24UNF
UC 307-22	34.925									5/16-24UNF
UC 307	35									M8X1
UC 307-23	36.512									5/16-24UNF
UC 308-24	38.1	90	52	19	33	23	30	7.5	4	3/8-24UNF
UC 308	40									M10X1.25
UC 309-26	41.275	100	57	22	35	25	33	8.3	4	3/8-24UNF
UC 309-27	42.862									3/8-24UNF
UC 309-28	44.45									3/8-24UNF
UC 309	45									M10x1.25
UC 310-30	47.625	110	61	22	39	27	35	9.5	4.5	7/16-20UNF
UC 310-31	49.212									7/16-20UNF
UC 310	50									M12x1.5
UC 311-32	50.8	120	66	25	41	29	37	10.3	5	7/16-20UNF
UC 311-33	52.388									7/16-20UNF
UC 311	55									M12x1.5
UC 312	60	130	71	26	45	31	39	11.1	5	M12x1.5
UC 312-39	61.912									7/16-20UNF
UC 313-40	63.5	140	75	30	45	33	41	11.9	5.5	7/16-20UNF
UC 313	65									M12x1.5
UC 314-43	68.262	150	78	33	45	35	43	12.7	6	7/16-20UNF
UC 314	70									M12x1.5
UC 315-47	74.612	160	82	32	50	37	46	13.5	6	1/2-20UNF
UC 315	75									M14X1.5
UC 315-48	76.2									1/2-20UNF
UC 316	80	170	86	34	52	39	48	14.3	6.5	M14x1.5
UC 316-51	80.962									1/2-20UNF
UC 317	85	180	96	40	56	41	50	15.1	7	M16x1.5
UC 318-55	87.312	190	96	40	56	43	52	15.9	7	5/8-18UNF
UC 318	90									M16x1.5
UC 319	95	200	103	41	62	45	54	16.7	7.5	M16X1.5
UC 320	100	215	108	42	66	47	58	18.3	8	M18x1.5
UC 320-63	100.012									5/8-18UNF
UC 320-64	101.6									5/8-18UNF
UC 321	105	225	112	44	68	49	60	19.1	8	M18x1.5
UC 322	110	240	117	46	71	50	62	20.6	8.5	M18x1.5
UC 324	120	260	126	51	75	55	66	20.6	9	M18x1.5
UC 326	130	280	135	54	81	58	72	22.2	9.5	M20x1.5
UC 328	140	300	145	59	86	62	76	23.8	10.5	M20x1.5

Model NO.	dZ	d0	D	B	C		C1	C2	H 300	H 2300
Model NO.	dZ	d0	D	max	min	max	C1	C2	H 300	H 2300
UK 205	25	20	52	27	15	17	3.9	2.5	H 305	H 2305
UK 206	30	25	62	30	16	19	5	2.5	H 306	H 2306
UK 207	35	30	72	34	17	20	5.7	3	H 307	H 2307
UK 208	40	35	80	36	18	21	6.2	3	H 308	H 2308
UK 209	45	40	85	39	19	22	6.4	3	H 309	H 2309
UK 210	50	45	90	43	20	24	6.5	3.5	H 310	H 2310
UK 211	55	50	100	47	21	25	7	3.5	H 311	H 2311
UK 212	60	55	110	49	22	27	7.6	4	H 312	H 2312
UK 213	60	65	120	51	23	39	8.9	5	H 313	H 2313
UK 215	75	65	130	58	25	42	8.9	5	H 315	H 2315
UK 216	80	70	140	61	26	45	8.8	6	H 316	H 2316
UK 217	85	75	150	64	28	48	10	6	H 317	H 2317
UK 218	90	80	160	68	30	51	10	6	H 318	H 2318
UK 305	25	20	62	27	17	24	5.6	3		H 2305
UK 306	30	25	72	30	19	26	6	3		H 2306
UK 307	35	30	80	34	21	28	6.7	3.5		H 2307
UK 308	40	35	90	36	23	30	7.5	4		H 2308
UK 309	45	40	100	39	25	33	8.3	4		H 2309
UK 310	50	45	110	43	27	35	9.5	4.5		H 2310
UK 311	55	50	120	47	29	37	10.3	5		H 2311
UK 312	60	55	130	49	31	39	11.1	5		H 2312
UK 313	65	60	140	51	33	41	11.9	5.5		H 2313
UK 315	75	65	160	58	37	46	13.5	6		H 2315
UK 316	80	70	170	61	39	48	14.3	6.5		H 2316
UK 317	85	75	180	64	41	50	15.1	7		H 2317
UK 318	90	80	190	68	43	52	15.9	7		H 2318
UK 319	95	85	200	71	45	54	16.7	7.5		H 2319
UK 320	100	90	215	77	47	58	18.3	8		H 2320
UK 322	110	100	240	84	50	62	20.6	8.5		H 2322
UK 324	120	110	260	90	55	66	20.6	9		H 2324
UK 326	130	115	280	98	58	72	22.2	9.5		H 2326
UK 328	140	125	300	107	62	76	23.8	10.5		H 2328

Q & A

Are you a trading company or a manufacturer?

We are not only a professional bearing manufacturer, but also a highly experienced trading company.
This enables us to supply a wide range of bearing products — both those we produce ourselves and those sourced from reliable partners — to meet diverse customer needs.

Can I visit your factory?

Sure, you’re welcome to visit our factory anytime!
Just let us know your schedule in advance, and we’ll arrange everything for you.

Can we take some samples? Any fees?

Yes, we can provide free samples, but the shipping cost is on your side.
If you place an order after confirming the sample, we will refund the shipping fee or deduct it from the order total.

What are the loading ports?

Our primary loading port is Qingdao, but we can also ship from Shanghai, Tianjin or other ports in China as needed.

Is there quality inspection before loading?

Of course. All our products undergo strict quality inspection before packing. Any that do not meet the standards are rejected and discarded.
Customers are also welcome to arrange third-party inspections before loading.
